刘海胡同在紧凑的院落空间内，透过铺面材质与景观界定空间层次，力求在小环境中创造丰富而整体的空间穿透，将材质细节由室内延展到院落，经由对日常建筑元素的调控，整合院落的内外的起居和社区空间。设计同时通过北房三开间的结构空间，界定上铺下居、前厅后室的剖面关系，转化传统柱间的装折体系，成为现代竹钢框台的墙体深度与多元互动的门扇开关，反映家居身体尺度与院落内外的视线感知。
胡同肌理
由胡同的肌理推测，刘海胡同是南北向三进大院北侧最后一进分割出来的小院。面积118平米的紧凑小院是北房南院的格局。2015年北京设计周《遇见什杀海》装置后我们受业主委托，继续设计苇坑胡同与邻近的刘海胡同，探讨小院改造民宿的居住模式。在维持原有的房屋轮廓，北房结构必须保留的前提下，最初设计在北侧通过下挖创造三开间的夹层居住空间，在南院上下层创造序列景深的游园空间体验。
随着南侧产权的的厘清与缩减，设计重点转移到院落景观的空间界定与北房室内外的空间互动，同时将南面存留的线性空间，发展为合院民宿社区的厨房与共享的半室外公共空间。
夹层上下
北房保持了原有的建筑结构，将三开间的结构空间划为三间客房。紧凑的空间经由垂直向度的发展成为前居后室、上寝下卫的剖面关系。

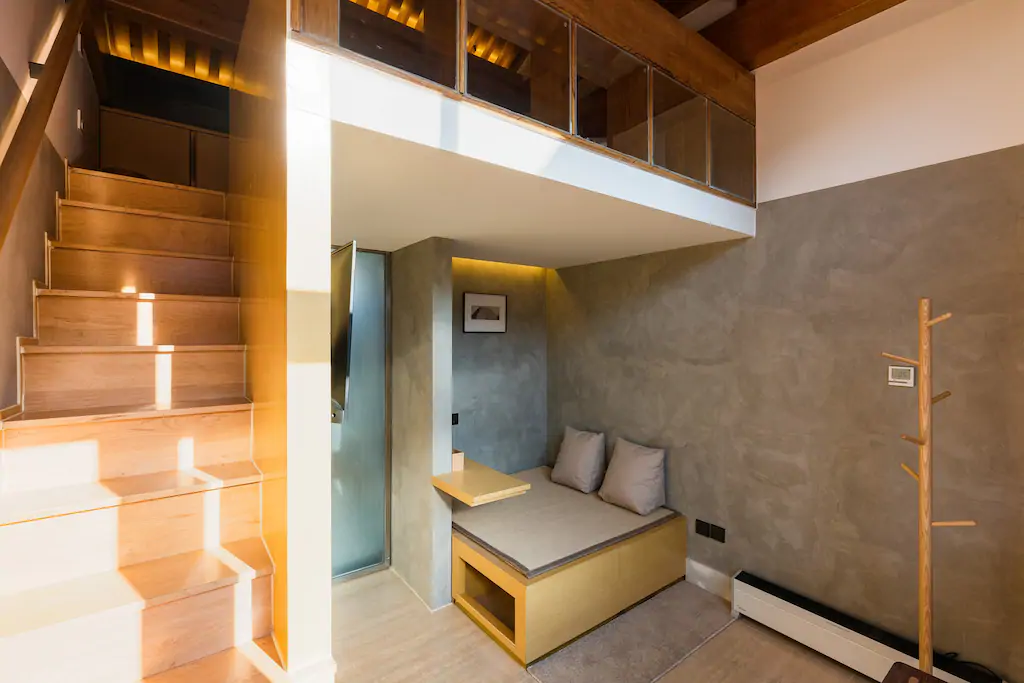

入口通过木梯与夹层相连。一层的居室配合紧凑的面积，将家具与前厅周边墙体整合，衣柜和鞋架分别嵌入楼梯下和平台下方，窗边的木桌台及储物与立面框架整合。暖灰的墙身统合了夹层高度以下的细腻墙面，协调木板卧榻炕台、地面洞石的温暖质地和地暖设施。上层床垫设置于下方卫生间之上，成为尺度亲切的夹层卧室；木梁架配合采光照明，竹钢与玻璃组合的低架结合扶手，保持了夹层至院落的视觉联系，也让两侧日常物品的摆放整合内侧座台与背后的热水与空调设施。
内外立面
通过身体尺度与家具的互动以及视线的延伸，竹钢的内外立面透过窗台加厚层次，成为室内外的空间间隔与联系。就建构的层面看，在传统民居大木作的框架结构之间，小木作的装折体系，或者说柱间墙体的门窗栏板，经由三公分的竹钢窗框厚度、与四十公分深度的窗台协调内外进退。木色竹钢结合白色粉墙和深灰的金属板材质，以轻微的现代语言取代传统的木作。台面以下的搁板提供民宿的日常物品摆放；玻璃将休息平台上的视线引向室外地面的青瓦水池。大片不分格的玻璃窗连通内外景观；侧面中轴开启扇与纱窗则满足通风、防虫的功能；上方的无框玻璃转角给室内带入一片天空。由外侧立面看，竹钢材料的厚度与凹凸变化，形成一种统合院落的亲切尺度，为紧凑的民居改造提供了新的空间语言。
景观院落

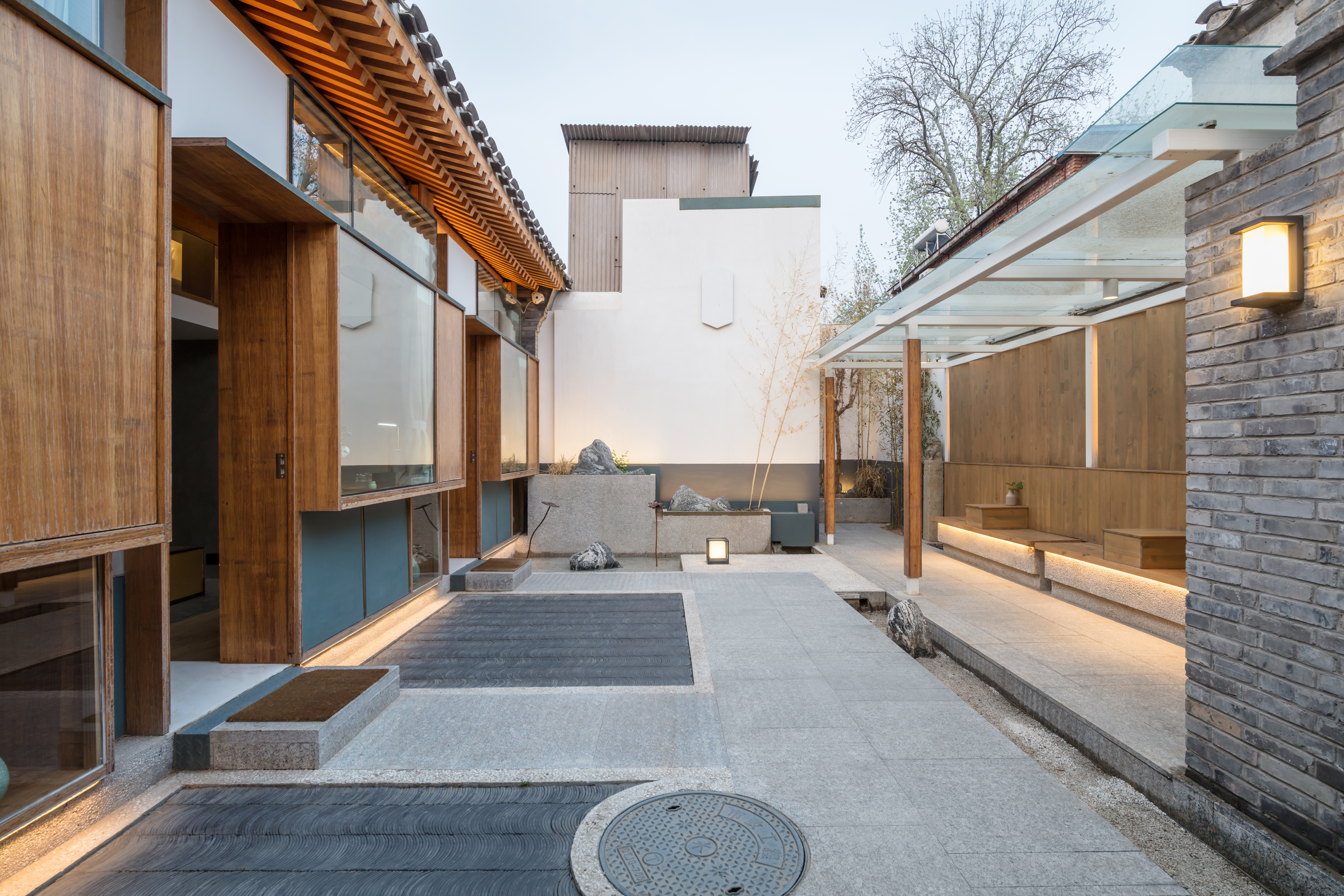

设计通过玻璃天棚、铺面材质与水体界定院落的空间层次，同时成为北房三开间的室外延伸。通过大门对景的花池院墙起伏，协调院落里外的景观层次，而雨棚向东南延伸的小院，进一步的增加了院落空间的景观进深。设计在小尺度中创造丰富而整体的流畅性， 经由突出材料和建构的手工品质，让细节延展到大的空间布局，将现实的场地条件转化为空间的整体架构。
玻璃雨棚下的木板座椅与北房立面形成南北的材质呼应；院子里的黑色墙裙，连接木墙材质同时统一院子的高程。院落底端的院墙，通过局部升高与墙外的铁皮屋形成前后高低的层次关系；墙顶的黑色条形钢板呼应了铁皮屋的挑檐，同时将远处树木纳入院落景观。在维持原有墙体轮廓的前提下，设计通过厚度变化与墙体和屋檐间的留缝，保持了对景墙体的自主性。院落铺面的水池、花池收边采用露石混凝土，房间前地面铺青瓦，增加整体材料的质感。入口阶梯与房门的留缝，雨棚包木柱子的不接地，花池的凹槽与墙面的铜条装饰，将建造分解为单独的元素脱离于“房”或“棚”的体量，进而纳入院落的整体景观空间。
